Astell&Kern
KANN MAX
  • SKU: MF Code: MF-054

Engineered to Powerful Perfection



Availability:
13

-

+

    Add Cart
    Add To Wishlist | Compare
    AK ZERO1
    $ 10
    Compare | Wishlist

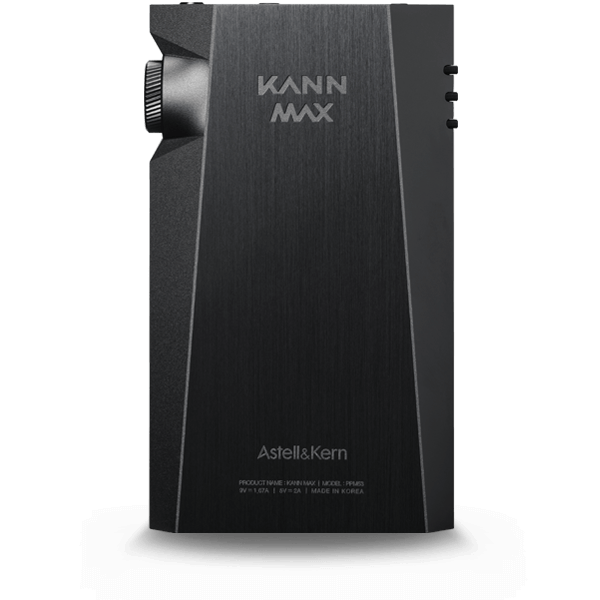

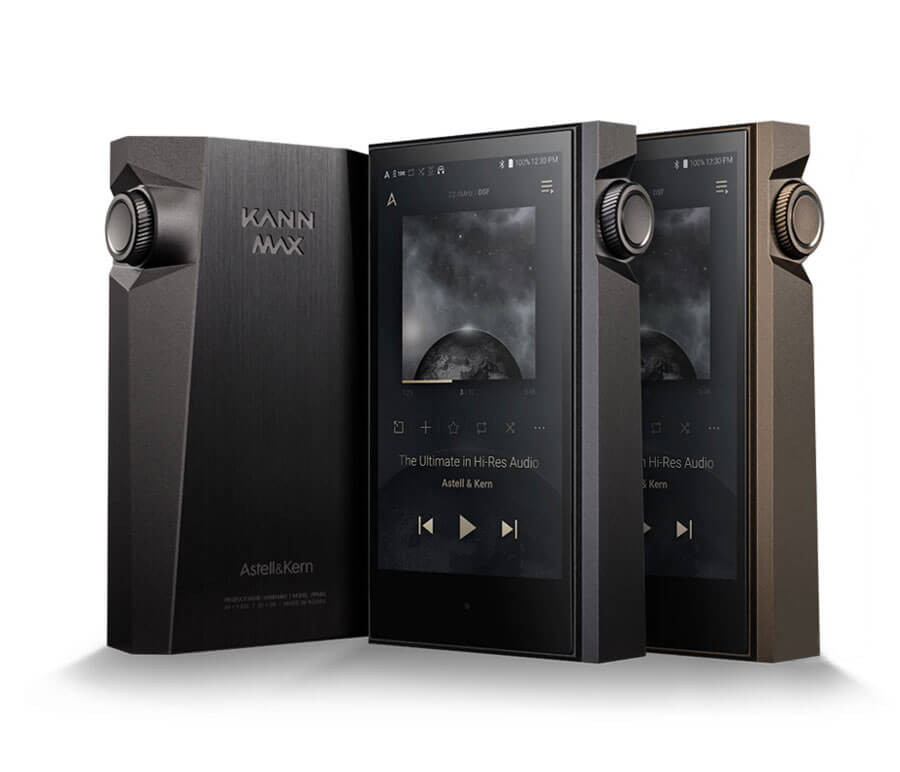

    The KANN series is a portable player lineup loved by audiophiles all over the world for its performance focused on high output and clear sound. KANN MAX, the fourth product in the KANN series, builds on the advantages of the KANN series with higher output and portability. It provides 4 levels of gain and up to 15Vrms output so that a wide array of headphones can be driven in an optimal state.

     By integrating the proven design of the KANN series into a lighter-weight and smaller-sized player, we have realized both ultra-high output and low noise. KANN MAX features ESS ES9038Q2M Quad-DAC together with Astell&Kern's unique audio technology to provide the best performance you can feel from a portable DAP.

    • Model

      KANN MAX

    • Body Color

      Anthracite Gray, Brown Mud

    • Body Material

      Aluminum

    • Display

      4.1-inch 720 x 1280 touch screen

    • Supported Audio Formats

      WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA

    • Sample Rate

      PCM : 8kHz ~ 768kHz (8/16/24/32bits per Sample)
      DSD Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), DSD512(1bit, 22.4MHz) Stereo

    • Output Level

      [Low] Unbalanced 2Vrms / Balanced 4Vrms (Condition No Load),
      [Mid] Unbalanced 4Vrms / Balanced 8Vrms (Condition No Load),
      [High] Unbalanced 6Vrms / Balanced 12Vrms (Condition No Load),
      [Super] Unbalanced 8Vrms / Balanced 15Vrms (Condition No Load)

    • CPU

      Quad-core

    • DAC

      ESS ES9038Q2M x4 (Quad-DAC)

    • Decoding

      Support up to 32-bit/768kHz Bit-to-Bit Playback

    • Input

      USB Type-C input (for charging & PC & MAC)

    • Outputs

      Unbalanced Out (3.5mm), Optical Out (3.5mm)
      Balanced Out (2.5mm, only 4-pole supported | 4.4m, only 5-pole supported)

    • Wi-Fi

      802.11 b/g/n (2.4GHz)

    • Bluetooth

      V5.0 (A2DP, AVRCP, Qualcomm® aptX™ HD, LDAC)

    • Dimensions

      2.68"(68.3mm)[W] x 4.6"(117mm)[H] x 0.92"(23.6mm)[D]

    • Weight

      about 10.76oz (305g)

    • Feature Enhancements

      Firmware upgrade supported (OTA)

    • Operating Temperature

      0℃ ~ + 40℃ (32℉~ 104℉)
