Astell&Kern
PATHFINDER
  • SKU: DB-009MF Code: MF-009

The Hybrid IEM Redefined

Availability:
$ 19

-

+

    No Accessories Available

    The Hybrid IEM Redefined

    Campfire Audio and Astell&Kern have earned the recognition of audiophiles around the world thanks to their excellent technology introduced with the first collaboration model, AK Solaris X, which is a celebrated product that recreates the deep, rich sound of Astell&Kern.

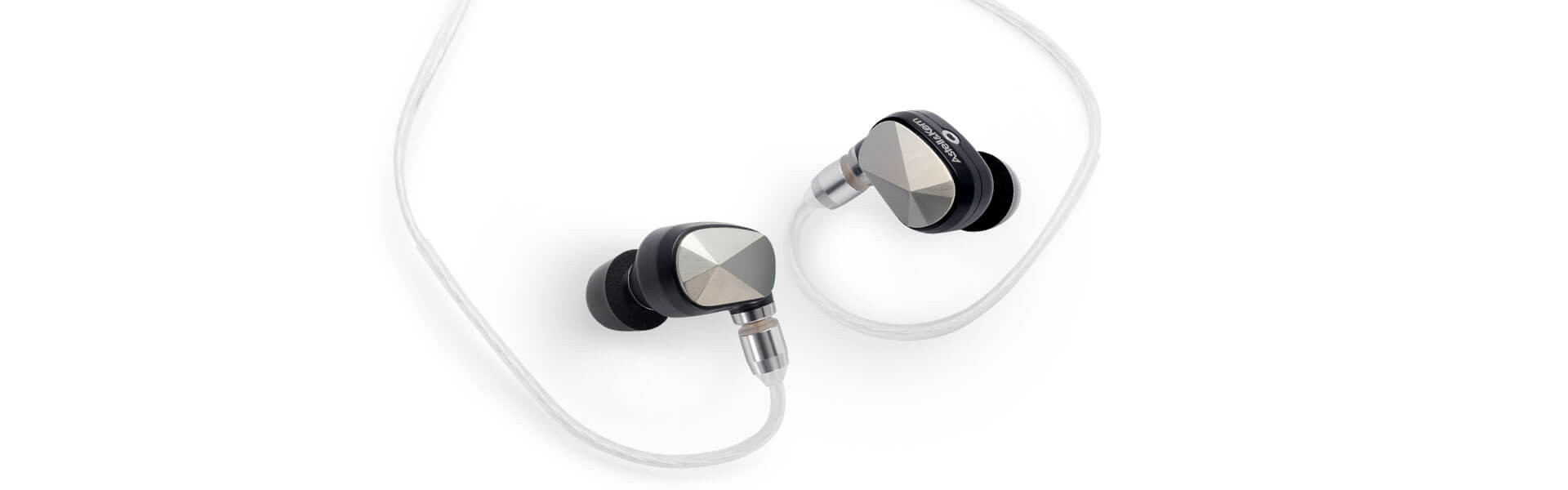

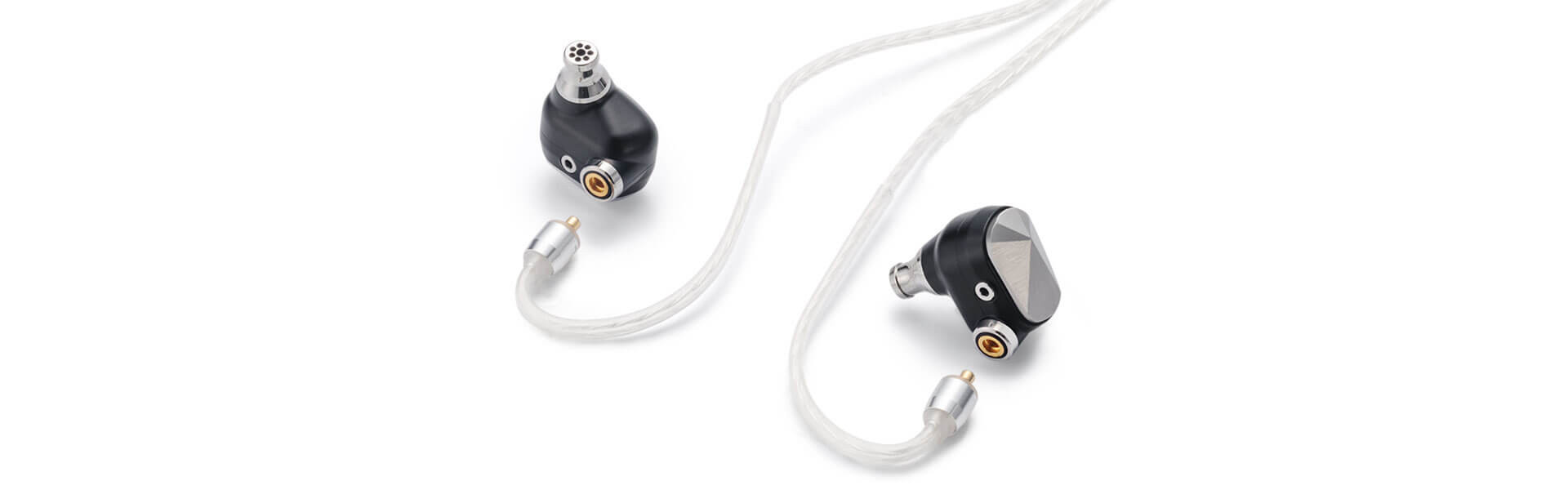

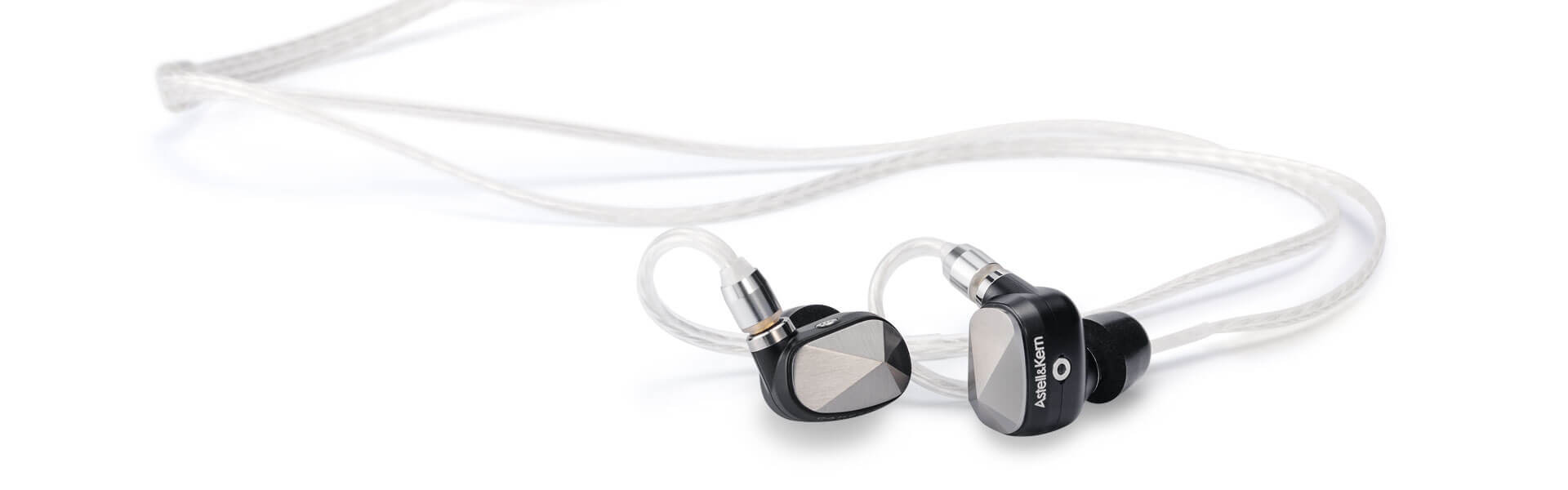

    Now, Astell&Kern and Campfire Audio join forces once again to present PATHFINDER, a new hybrid IEM that offers amazing technology and sound.



    Astell&Kern and Campfire Audio take innovation to a new level by combining their advanced technologies and designs to create a product worthy of the name PATHFINDER. To realize this dream, they repeatedly tested numerous designs to produce a structure different from existing IEMs and added an innovative Dual-Diaphragm Balanced Armature Driver, finally achieving the best sound.

    Enjoy a unique experience through PATHFINDER, a more advanced Hybrid IEM.







    The Combination for Perfect Balance

    A completely new IEM design was needed for a wider frequency range, realistic reproduction, and a perfect balance.

    To achieve this, PATHFINDER has a new Dual-Diaphragm Balanced Armature (BA) Driver from Knowles for the key part of the midrange, dual BA drivers for high frequencies, as well as two dynamic drivers with hybrid diaphragms that create bass and midrange.



    A Radial Venting Acoustic Chamber, newly developed by Campfire Audio, is applied to the two Custom 10mm Dynamic Drivers. The 3D-printed chamber design naturally expresses the intense low-frequency sound produced by the two dynamic drivers while preserving the unique sound of the Dynamic Driver.





    Model

    PATHFINDER

    Transducer Type

    [High] Custom Dual Balanced Armature Drivers + T.A.E.C.

    [Mid] All-New 'Dual Chamber' Balanced Armature Driver Technology from Knowles

    [Mid-Low to Sub-Bass] All-New Dual Custom 10mm Dynamic Drivers paired with Radial Venting Technology



    Cable

    2.5mm Silver-Plated Copper Cable

    3.5mm Silver-Plated Copper Cable

    4.4mm Silver-Plated Copper Cable

    Material / Design

    Aluminum shell / Hand polished stainless steel threaded spout / Stainless steel Inlay and Parts

    Frequency Response

    5Hz-20kHz

    SPL

    94dB @ 1kHz 13.49mVrms

    Impedance

    6.2 Ohm @ 1kHz

    Total Harmonic Distortion

    Less than 1%
